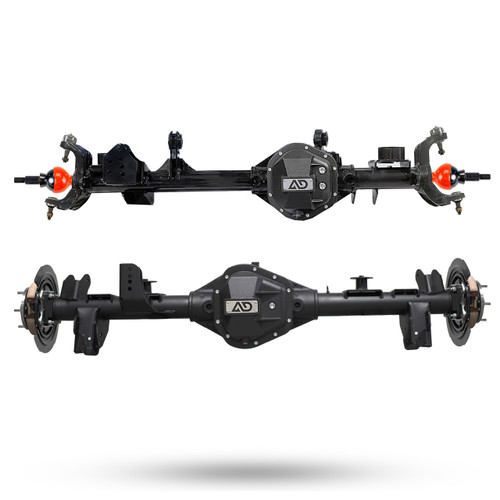

Advanced Driveline HD Dana 44 JK Front Axle Assembly features BEEFY 1/2" tubes, 1/4" & 3/16" brackets, along with heavy duty outer C's. Including our heavy duty nodular iron diff cover to further protect the internals.
Axle Housing Features:
- 1/2" Tube Wall
- High And Low Trackbar Mount Positions
- Heavy Duty Outer C's
- Heavy Duty Differential Covers
- Thick Brackets All Around (Trackbar Bracket, Coil Buckets, Control Arm Mounts, Sway Bar Tabs)
- Increased Caster For Lifted Applications
This center section is a conventional Dana 44, and does not fit a JK Rubicon factory E-Locker.
Suggested Differential/Locker;
ARB Air Locker RD117 (30 Spline)
ARB Air Locker RD147 (35 Spline)
Eaton E-Locker 19977-010 (30 Spline), etc.
Suggested Axle Shafts;
Ten Factory MG22154 Chromoly Axle Kit w/ 1350 U-Joints 30 Spline
RCV CVJ44-JK-35 RCV PERFORMANCE DANA 44 CV AXLE SET 35 Spline
RCV CVJ44-JK-PROK RCV PERFORMANCE DANA 44 CV AXLE SET 30 Spline
Axle Length 19.1"/34.1"
Notes:
** All axles are built to order. Please allow a lead time of 4-6 weeks for production and shipping
***Looking for a different variation of components? Brackets left off, loose or tacked in place? We build all of our housings to suite your needs. Contact us today!
