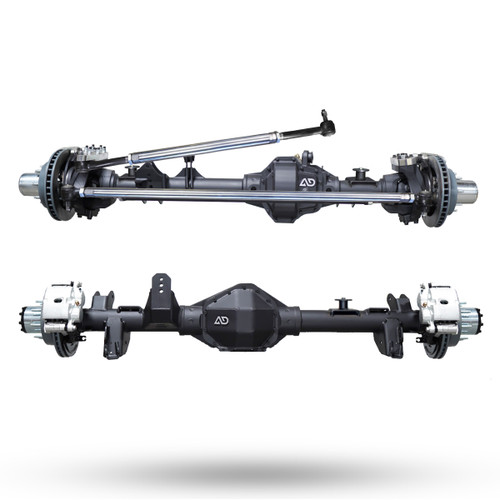

Seeking the legendary strength of a true ONE TON axle set? Look no further! The Advanced Driveline Kingpin 60 / 14 Bolt will provide all of the reassurance of running larger tires on your Jeep Wrangler JL through the toughest terrain this world has to offer. This axle set is also a complete kit designed to make this huge upgrade the smoothest installation.
ADV Dana 60 Kingpin Front Axle Spec:
- ARB 35 Spline Air Locker
- 4340 Chromoly Axle Shafts (35 Spline Inner & Outer)
- 1480 Axle U-Joint (PN 5-806x)

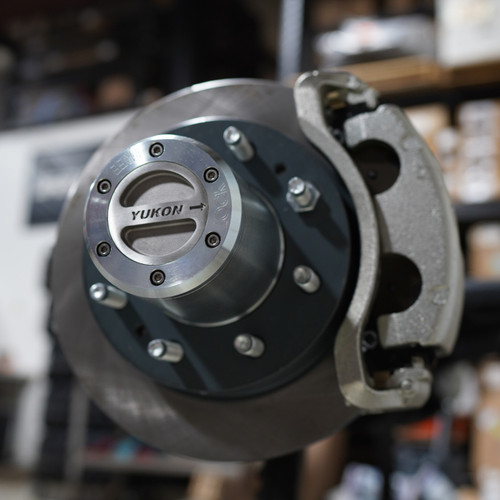

- Yukon Hardcore Locking Hubs (35 Spline)
- Fully Welded Fabricated Differential Cover
- Solid Aluminum Steering Kit (Drag Link & Tie Rod)
- Big Brake Kit: 13.5" Rotors & Dual Piston Calipers (GM K2500)
- Heavy Duty Axle Bracketry Fully Welded
- Super 60 Gear Set (10" Ring Gear Diameter)
- Plug & Play JL ABS Lines
- 8 on 6.5 Bolt Pattern, 9/16-18 Thread
- High Pinion Differential
- ARB Accessories; Air Line, Solenoid, Fittings to Link To Your Compressor
- 3.5" DOM Axle Tubes
- Choice of Pinion 1350 or 1410, Recommended 1350 (Includes U-Bolts/Hardware)
ADV 14 Bolt Rear Axle Spec:
- ARB 40 Spline Air Locker
- 40 Spline 4340 Chromoly Axle Shafts (35 Spline Inner & Outer)
- Full Shave Housing, Nearly The Clearance of a Dana 44
- Fully Welded Fabricated Differential Cover
- Plug & Play ABS Connection
- Extended Parking Brake Cables Included
- Big Brake Kit: 13.5" Rotors & Dual Piston Calipers (GM K2500)
- Heavy Duty Axle Bracketry Fully Welded
- ARB Accessories; Air Line, Solenoid, Fittings to Link To Your Compressor
- 8 on 6.5 Bolt Pattern, 9/16-18 Thread
- 4" DOM Axle Tubes
- Choice of Pinion 1350 or 1410
Notes:
** All axles are built to order. Please allow a lead time of 8-10+ weeks for production and shipping
Warranty:
- Lifetime Warranty On Axle Shafts (Front & Rear)(Does Not Include U-Joint)
- 5 Year Warranty On Axle & Components; Gears, Housing, Brackets, Etc.
Do you need additional customization? Whether it be a custom width, truss, particular brackets left off or tacked in place, third link / triangulated mounts? CALL US for a personalized quote to suit your needs.
Fits;
Jeep Wrangler JL 2 Door (2018-Current)
Jeep Wrangler JL Unlimited 4 Door (2018-Current)
*All Submodels
